Products

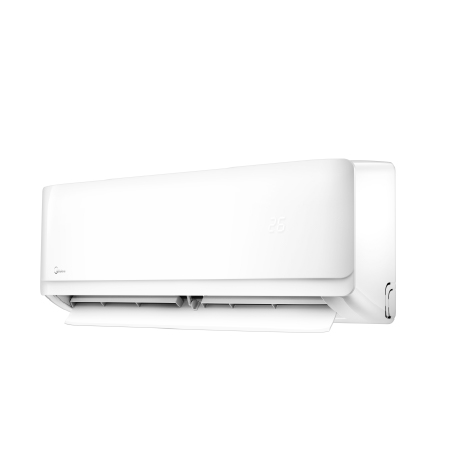

Conditioner MSAG-30HRFN8
Modes: Cooling / Heating
Power: 28000 BTU (95-100m²)
Refrigerant type:R32
Energy Efficiency Class Cooling: A++
Energy Efficiency Class Heating: A+
Warranty: 5 years
* Manufacturer reserves the right to
change specifications or design without prior notice.
| Model | MSAG-30HRFN8 INV | |||||||||||||||||||||||||||||||||||||||||||||||
| Power supply | V-Ph-Hz | 220_240V_1Ph,FREQUENCY_50HZ | ||||||||||||||||||||||||||||||||||||||||||||||
| Inverter | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Cooling (Standard conditions) | Capacity | Btu/h | 28000(6700~29882) | |||||||||||||||||||||||||||||||||||||||||||||
| Input | W | 2710(654~2831) | ||||||||||||||||||||||||||||||||||||||||||||||
| Current | A | 12(2.9~12.5) | ||||||||||||||||||||||||||||||||||||||||||||||
| Heating (Standard conditions) | Capacity | Btu/h | 28000(11000~32584) | |||||||||||||||||||||||||||||||||||||||||||||
| Input | W | 2270(859~2566) | ||||||||||||||||||||||||||||||||||||||||||||||
| Current | A | 9.94(3.81~11.31) | ||||||||||||||||||||||||||||||||||||||||||||||
| Seasonal Cooling | Pdesignc | kW | 8.6 | |||||||||||||||||||||||||||||||||||||||||||||
| SEER | W/W | 6.7 | ||||||||||||||||||||||||||||||||||||||||||||||
| Energy Efficiency Class | A++ | |||||||||||||||||||||||||||||||||||||||||||||||
| Heating(Average ) | Pdesignh | kW | 7.4 | |||||||||||||||||||||||||||||||||||||||||||||
| SCOP | W/W | 4.1 | ||||||||||||||||||||||||||||||||||||||||||||||
| Energy Efficiency Class | A+ | |||||||||||||||||||||||||||||||||||||||||||||||
| Rated Power Input | W | 3930 | ||||||||||||||||||||||||||||||||||||||||||||||
| Rated Current | A | 18 | ||||||||||||||||||||||||||||||||||||||||||||||
| Compressor | Brand | GMCC | ||||||||||||||||||||||||||||||||||||||||||||||
| Indoor fan motor | Speed(Hi/Mi/Lo) | r/min | 1200/1020/930 | |||||||||||||||||||||||||||||||||||||||||||||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1490/1139/961 | ||||||||||||||||||||||||||||||||||||||||||||||
| Indoor noise level (Hi/Mi/Lo/Si) | dB(A) | 51.0/45.0/38.5/27.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| Indoor sound power level | dB | 64 | ||||||||||||||||||||||||||||||||||||||||||||||
| Indoor unit | Dimension(W*D*H) | mm | 1259x283x362 | |||||||||||||||||||||||||||||||||||||||||||||
| Packing (W*D*H) | mm | 1340x450x380 | ||||||||||||||||||||||||||||||||||||||||||||||
| Net/Gross weight | kg | 17.3/22.9 | ||||||||||||||||||||||||||||||||||||||||||||||
| Outdoor fan motor | Speed | r/min | 850/550 | |||||||||||||||||||||||||||||||||||||||||||||
| Outdoor air flow | m3/h | 2700 | ||||||||||||||||||||||||||||||||||||||||||||||
| Outdoor sound power level | dB | 69 | ||||||||||||||||||||||||||||||||||||||||||||||
| Outdoor unit | Dimension(W*D*H) | mm | 970x370x673 | |||||||||||||||||||||||||||||||||||||||||||||
| Packing (W*D*H) | mm | 1030x438x750 | ||||||||||||||||||||||||||||||||||||||||||||||
| Net/Gross weight | kg | 42.7/48.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| Refrigerant | Type | kg | R32/1.68 kg | |||||||||||||||||||||||||||||||||||||||||||||
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 9.52mm(3/8in)/15.9mm(5/8in) | |||||||||||||||||||||||||||||||||||||||||||||
| Max. refrigerant pipe length | m | 50 | ||||||||||||||||||||||||||||||||||||||||||||||
| Indoor(cooling/ heating) | ℃ | 16~32/0~30 | ||||||||||||||||||||||||||||||||||||||||||||||
| Outdoor(cooling/heating) | ℃ | -5~50/-5~24 | ||||||||||||||||||||||||||||||||||||||||||||||
| Application area (Cooling Standard) | m2 | 100 | ||||||||||||||||||||||||||||||||||||||||||||||
| FUNCTIONS | ||||||||||||||||||||||||||||||||||||||||||||||||
| High density filter | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Wifi | Additional Wi-Fi module required, must be purchased separately | |||||||||||||||||||||||||||||||||||||||||||||||
| Self-cleaning | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Golden fin | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Auto-restart | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Refrigerant leakage detect | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Louver position memory | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Turbo operation | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Horizontal louver autoswing | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Follow me | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Timer | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| ECO | YES | |||||||||||||||||||||||||||||||||||||||||||||||
| Sleep mode | YES |
