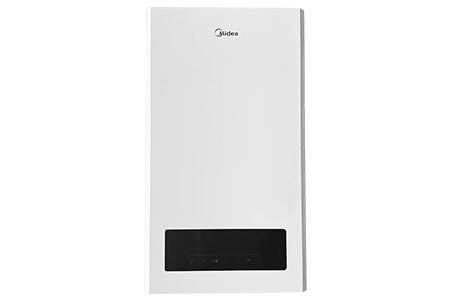

Gas Boiler L1PB28-C28WM

Model number: L1PB28-C28WM

Type: Gas boiler
Nominal Power input: kW 28


Warranty: 3 years
* Manufacturer reserves the right to
change specifications or design without prior notice.
In Stock
Price: 1799 GEL 1999 GEL
Specification
L1PB28-C28WM
Wi-Fi
Rated heating input 28
Minmum heating input8.9
Rated heating output 25.1
Minmum heating output7.7
Heating temperature regulation range(℃)30-80
Floor heating temperature regulation range(℃)30-60
Applicable water pressure of the heating system(Mpa)0.04-0.3
Maximum pressure of the heating system(Mpa)0.3
Capacity of the expansion tank(L)6
Temperature regulation of the sanitary hot water(℃)35-60
Maximum pressure of the sanitary hot water(Mpa)0.8
Minimum pressure of the sanitary hot water(Mpa)0.02
△t=25K nominal hot water production rate14.3
△t=30K nominal hot water production rate11.9
Rated Voltage / Freq220V/50Hz
Maximum input electric power(W)120
Waterproofing grade IPX4
Heating water outlet/bacakwater interfaceG3/4
Sanitary hot water/cole water interfaceG1/2
Gas interfaceG3/4
Cold inlet waterG1/2
Hot outlet waterG1/2
Flue pipe / Chimney diameter (Up cost)φ60/φ100
Efficiency89.5%
N.W (kg)30
G.W (kg)33
Product dimensions (mm)700*420*243
Packaging dimensions (mm)835*503*322
